Brake Disc CNC Lathe
Delivery Date：40 Days
Description：Single tool position, rough machining, fine machining.

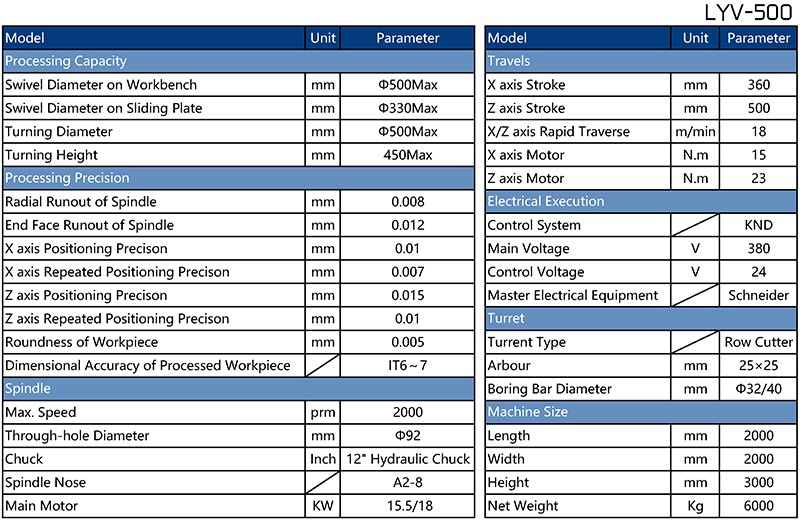

Model： LYV-500

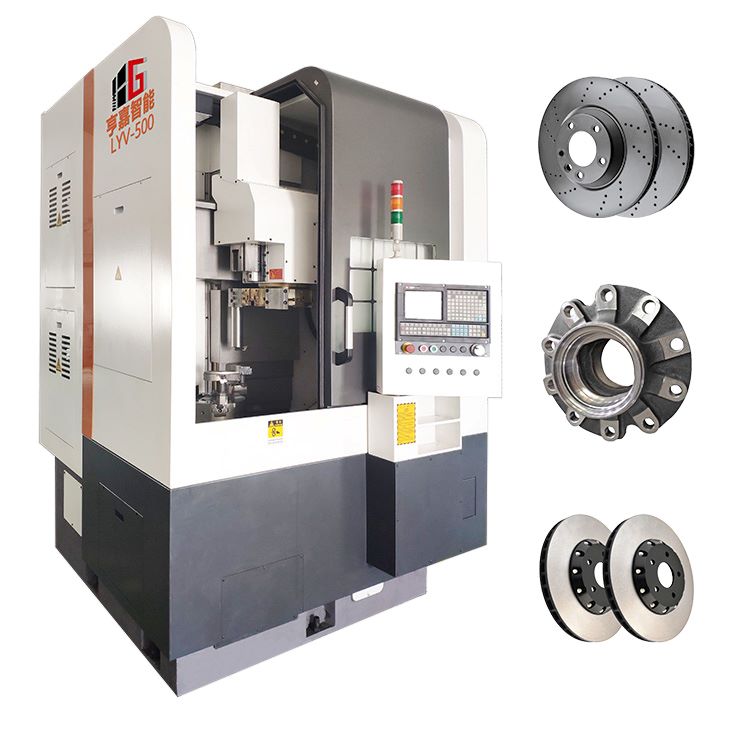

LYV-500 Brake Disc CNC Lathe is mainly for the rough and finish machining of automotive brake disc/drum products, and the Y-axis can be added as an option for the finish machining of double brake surfaces.
LYV-500 Brake Disc CNC Lathe is produced mainly for brake disc/drum's rough and finish turning. It can do finish turning for both faces of brake discs at the same time.
|
|

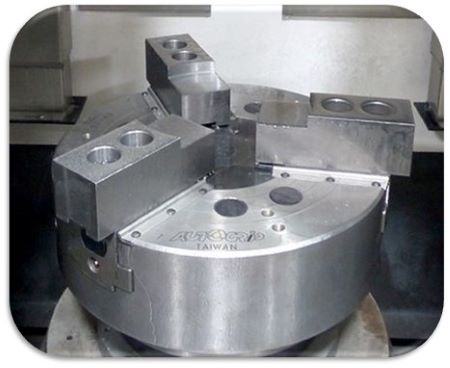

SPINDLE UNIT AND CHUCK ► Taiwan brand spindle unit 2000rpm. ► The lathe spindle structure is a high-speed, high-precision, high-rigidity shell-type spindle unit. ► Standard Chuck: Special replaceable clamping device. |
|
|

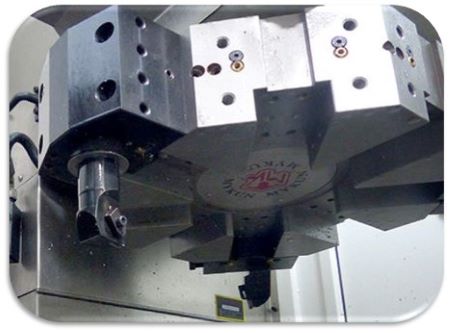

8-STATION HYDRAULIC TURRET ► Standard with 8-station hydraulic turret from Taiwan. |
|
|
|
|
MACHINE BASE ► The lathe body is made of HT300 gray cast iron thermal symmetrical box reinforced cast iron structure, which can minimize thermal deformation and provide strong support for heavy cutting. ► The bed base and main contact surfaces are processed by hand scraping. |
|
|
SYSTEM CNC CONTROL ► Standard: GSK, KND ► Optional: Siemens, Fanuc, Syntec, and others |
|
|
|
|
LUBRICATION ► Using a reliable centralized automatic lubrication device. ► Regular, quantitative automatic lubrication of the lubrication points of the machine tool, lubrication time can be adjusted according to the working conditions |
|
Body of LYV-500 Brake Disc CNC Lathe and standing post adopt heat symmetric style box rib structure. And X/Z axis adopt big span design. This machine adopt imported big size with high rigidity guide/lead screw and heavy load extra big roller pillar slider.
All of these dramatically improve processing precision and stability of LYV-500 Brake Disc CNC Lathe which is fit for high efficiency mass production of different kinds of brake discs/drums.
