Brake Disc CNC Lathe
Delivery Date：40 Days
Description：Double tool positions, rough machining and finishing machining available

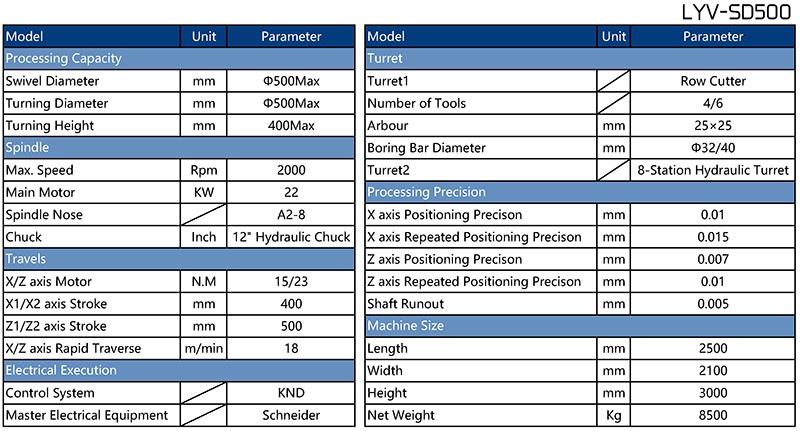

Model： LYV-SD500

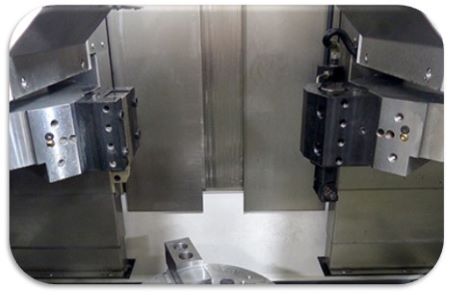

LYV-SD500 Brake Disc CNC Lathe is equipped with a turning spindle and two tool positions (optional gang tool or turret), which can be used for rough and fine machining of the brake disc at the same time with two knives, and can be equipped with an optional Y-axis for finishing double brake surface processing .
LYV-SD500 Brake Disc CNC Lathe can fulfill rough turning and finish turning of brake discs/drums with one time clamping, and can do finish turning of two faces of brake discs at the same time.
|
|
SPINDLE UNIT AND CHUCK ► Taiwan brand spindle unit 2000rpm, with high precision and speed. ► Standard: Disc-type workbench ► Optional: Ø500mm 3-jaw hydraulic chuck |
|
|
8-STATION HYDRAULIC TURRET ► Standard with 8-station hydraulic turret from Taiwan. |
|
|
|
|

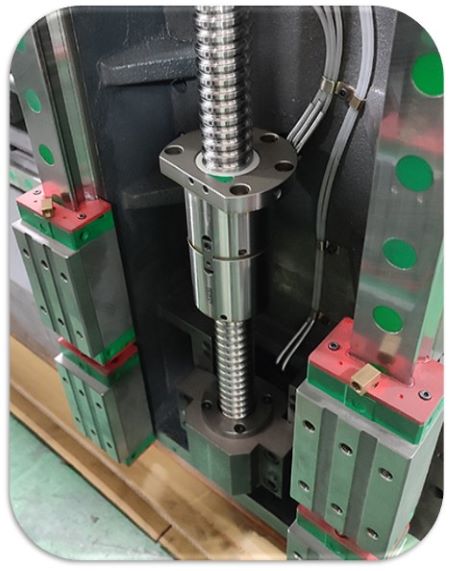

TAIWAN LINEAR RAIL&BALL SCREW ► Double column portal type structure, symmetric. ► Adopt high-quality Taiwan linear guide rails and ball screws with large bearing capacity to ensure the positioning accuracy and repeatability of isotropic movement. |
|
|
MACHINE BASE ► The lathe body is made of HT300 gray cast iron thermal symmetrical box reinforced cast iron structure, which can minimize thermal deformation and provide strong support for heavy cutting. ► The bed base and main contact surfaces are processed by hand scraping. |
|
|
|
|
SYSTEM CNC CONTROL ► Standard: GSK, KND ► Optional: Siemens, Fanuc, Syntec, and others |
|
LYV-SD500 Brake Disc CNC Lathe adopts inverted design for spindle and chuck, this machine has one turning with cutting spindle and two tool service position (row tool holder or turret on your choice). Body of machine and standing post adopt heat symmetric style box rib structure. And X/Z axis adopt big span design. All these can let this Brake Disc CNC Lathe bear big stress during heavy cutting.
These designs of LYV-SD500 Brake Disc CNC Lathe can fit for high precision, automatic and mass production for brake discs/drums. And production efficiency is 30% higher than traditional production ways.
