Screwdriver Bits Making Machine

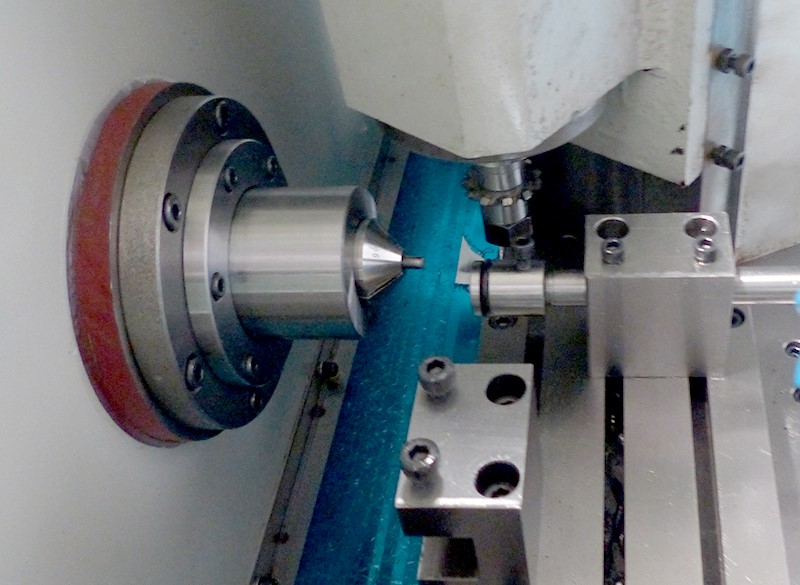

CXK-32X Screw Bit Auto Making Machine, it changes traditional processing technology and achieve turning, milling, slotting and drawing procedures with one time clamp step. Processing specification PH, PZ and Torx shape bits,etc.  Machine adopts high hardness and high rigidity cast iron machine body. With automatic loading, one worker can operate and take care 4-6 machines, which saves tremendous human resource costs.

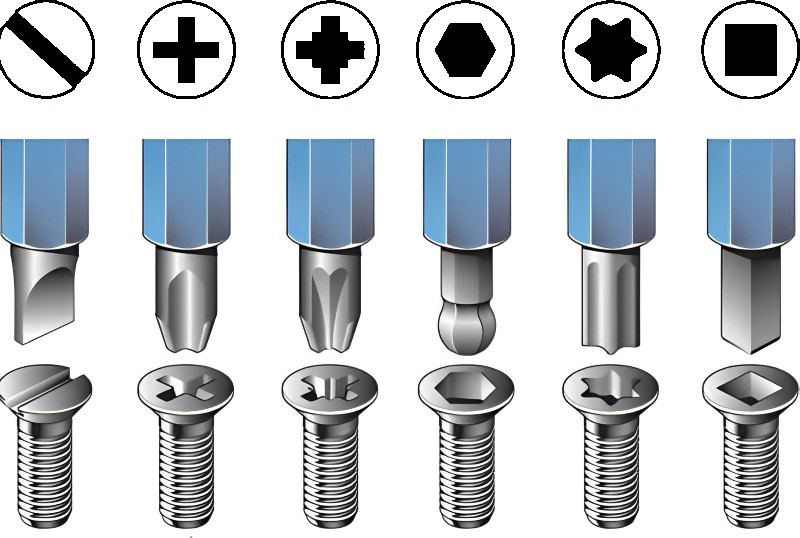

CXK-32X Screw Bit Auto Making Machine advantage: high precision and efficiency, low maintenance and labor cost. Machinable screwdriver and bits head type: PH, PZ, Torx, Slotted, Tri-wing, Square, Double-square, Triple-square, Hex and so on. Machinable screwdriver and bits length: 25mm ~ 350mm.

CXK-32X Screw Bit Auto Making Machine features:
1. Machinable range: diameter 3mm - 12mm, round and hexagon raw material.
2. Finish processing requirements completely and automatically, based on per drawing to head shape and size
3. Processing capacity approx  6 - 10 pcs/min;
4. optional with the vibrating disc as per customized requirement.
5. The automatic feeding rack.

CXK-32X Screw Bit Auto Making Machine equipment structure:
The equipment with characteristic stable, reliable, lightweight and flexible performance, automatic milling and turning multi-function machine, equipped and assembly with highly security, highly reliable components, easy operating and maintenance, all kinds of wearing parts and tooling Fixtures can be quickly replaced.
