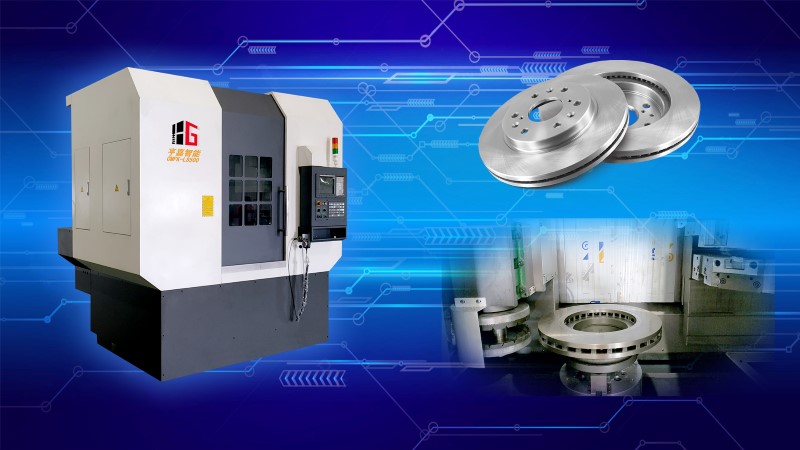

The Brake Disc CNC Grinder is a highly efficient machine that can simultaneously machine the outer diameters of both sides of a workpiece. This not only effectively improves the parallel precision of the workpiece but also shortens the processing time by 50%, meeting the processing needs of various precision disc-type workpieces, primarily brake discs.

Brake Disc CNC Grinder

The base of the Brake Disc CNC Grinder, reinforced with high-efficiency ribs, is not only integrally cast but also made of high-tensile cast iron. Coupled with a thermal flow balance design, it can meet the needs of long-term processing. The spindle is vertical to the ground and parallel to the human body, avoiding elliptical processing caused by the high-speed rotation inertia of the spindle, and demonstrating near true round precision. The X-axis, Z-axis, and SD-axis servo motors are directly connected to the ball screw through a flexible coupling, resulting in a short transmission chain, low noise, small backlash, and high servo precision with fast response speed.

The Brake Disc CNC Grinder adopts an ultra-heavy load type slide and high-rigidity linear rail, meeting the needs of high-speed turning. The servo motor drive shaft is fixed on the linear bearing, offering high rigidity and low power consumption. The machine is equipped with an imported high-rigidity eight-position hydraulic tool post, which has the advantages of high reliability, fast tool change speed, and precise positioning.

The CNC system of the Brake Disc CNC Grinder is the Beijing Kaine Emperor system, which is particularly suitable for high-speed, high-precision type processing. Each feed axis is driven by an absolute value servo motor, offering high precision and reliable performance. The chip removal surface inside the machine bed adopts a large inclination angle, and the whole is covered with a stainless steel guide plate to prevent chip accumulation and facilitate the sliding of chips into the spiral chip removal groove.

The vertical layout of the Brake Disc CNC Grinder occupies a small area, and the machine tool has enough maintenance space. The electrical and hydraulic pipelines are clear at a glance, making the machine clean, orderly, and easy to maintain. The overall rigidity of the Brake Disc CNC Grinder is high, with superior stability. Its processing performance, stability, and uniformity are extremely high. It is suitable for mass production of brake disc turning, offering high quality, high efficiency, and low cost. It is suitable for batch processing of medium and small-sized discs and disc-like parts with a diameter of less than 500mm.

The Brake Disc CNC Grinder is a highly efficient flat processing machine tool, mainly realizing the precision grinding processing of workpieces that require one-time grinding and forming of the upper and lower parallel end faces. The machine tool has high processing accuracy and high surface gloss, suitable for batch processing of high-precision double-end face parts.
